안드로이드 앱 만들기 : 채팅창 만들어 보기 (Jetpack Compose 에 AndroidView Binding)

Compose을 활용한 앱을 구현하는 동안에 이전에 만들었던 layout 을 활용하고자 하는 경우가 생긴다면... Androind ViewBinding을 활용하는 방법이 있었다.



https://developer.android.com/jetpack/compose/interop/interop-apis?hl=ko

상호 운용성 API  |  Jetpack Compose  |  Android Developers





구현을 시작해 보면, 먼저 gradle 파일에 implementation 을 추가해야 한다.

implementation "androidx.compose.ui:ui-viewbinding:$compose_version"

 다음은 채팅방 구현을 위해서 예전에 만들었던 코드에서 Recycleview 을 활용했던 layout을 가지고 왔다.



layout 예제

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".ChatRoomActivity">

    <LinearLayout
        android:id="@+id/linearLayout2"
        android:layout_width="match_parent"
        android:layout_height="60dp"
        android:orientation="vertical"
        android:weightSum="5"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="0dp"
            android:layout_weight="5"
            android:orientation="horizontal"
            android:weightSum="10">

            <TextView
                android:id="@+id/textView11"
                android:layout_width="0dp"
                android:layout_height="match_parent"
                android:layout_weight="2"
                android:gravity="center_horizontal|center_vertical"
                android:text="현재시간" />

            <TextClock
                android:id="@+id/textView10"
                android:layout_width="0dp"
                android:layout_height="match_parent"
                android:layout_weight="7"
                android:format12Hour="hh:mm"
                android:format24Hour="HH:mm"
                android:gravity="center_horizontal|center_vertical" />

        </LinearLayout>

    </LinearLayout>

    <androidx.recyclerview.widget.RecyclerView
        android:id="@+id/rv"
        android:name="com.roopre.simpleboard.Fragment.ChatMsgFragment"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_marginStart="8dp"
        android:layout_marginEnd="8dp"
        app:layoutManager="LinearLayoutManager"
        app:layout_constraintBottom_toTopOf="@+id/linearLayout"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/linearLayout2"
        tools:context=".Fragment.ChatMsgFragment"
        tools:listitem="@layout/custom_chat_msg" />

    <LinearLayout
        android:id="@+id/linearLayout"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginStart="8dp"
        android:layout_marginEnd="8dp"
        android:layout_marginBottom="8dp"
        android:orientation="horizontal"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent">

        <EditText
            android:id="@+id/content_et"
            android:layout_width="0dp"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:background="@drawable/bg_content_et"
            android:hint="메시지를 입력하세요."
            android:lines="1"
            android:maxLines="1"
            android:padding="8dp" />

        <ImageView
            android:id="@+id/send_iv"
            android:layout_width="40dp"
            android:padding="2dp"
            android:layout_height="wrap_content"
            android:adjustViewBounds="true"
            android:src="@drawable/ic_send" />

    </LinearLayout>

</androidx.constraintlayout.widget.ConstraintLayout>

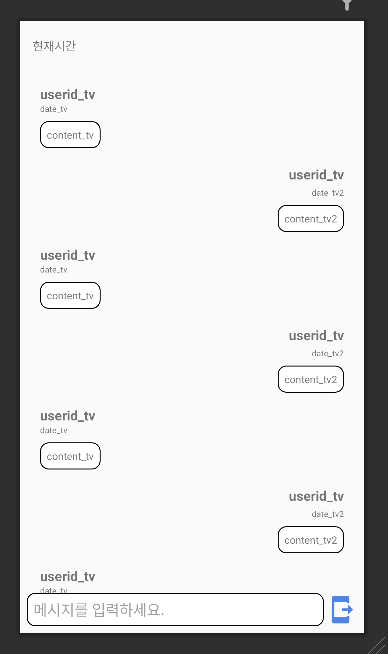

다음은 recycleview 에 들어갈 item layout은 다음과 같이 구현하였다.



<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/constraintLayout"
    android:layout_width="match_parent"
    android:layout_height="wrap_content">

    <androidx.constraintlayout.widget.ConstraintLayout
        android:id="@+id/other_cl"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        app:layout_constraintBottom_toTopOf="@+id/my_cl"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent">

        <TextView
            android:id="@+id/userid_tv"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginStart="16dp"
            android:layout_marginTop="16dp"
            android:text="userid_tv"
            android:textSize="16sp"
            android:textStyle="bold"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

        <TextView
            android:id="@+id/date_tv"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="date_tv"
            android:textSize="10sp"
            app:layout_constraintStart_toStartOf="@+id/userid_tv"
            app:layout_constraintTop_toBottomOf="@+id/userid_tv" />

        <TextView
            android:id="@+id/content_tv"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginTop="8dp"
            android:background="@drawable/bg_content_et"
            android:padding="8dp"
            android:text="content_tv"
            android:textSize="12sp"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintStart_toStartOf="@+id/date_tv"
            app:layout_constraintTop_toBottomOf="@+id/date_tv" />
    </androidx.constraintlayout.widget.ConstraintLayout>

    <androidx.constraintlayout.widget.ConstraintLayout
        android:id="@+id/my_cl"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintHorizontal_bias="1.0"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/other_cl">

        <TextView
            android:id="@+id/userid_tv2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginTop="20dp"
            android:layout_marginEnd="16dp"
            android:text="userid_tv"
            android:textSize="16sp"
            android:textStyle="bold"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

        <TextView
            android:id="@+id/date_tv2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginTop="4dp"
            android:layout_marginEnd="16dp"
            android:text="date_tv2"
            android:textSize="10sp"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintTop_toBottomOf="@+id/userid_tv2" />

        <TextView
            android:id="@+id/content_tv2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginTop="8dp"
            android:layout_marginEnd="16dp"
            android:background="@drawable/bg_content_et"
            android:padding="8dp"
            android:text="content_tv2"
            android:textSize="12sp"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintTop_toBottomOf="@+id/date_tv2"
            app:layout_constraintVertical_bias="0.0" />
    </androidx.constraintlayout.widget.ConstraintLayout>
</androidx.constraintlayout.widget.ConstraintLayout>



그리고 Recycleview 에 데이터를 넣고 구현하기 위해서 adapter을 구현하였다.



import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;

import androidx.compose.runtime.snapshots.SnapshotStateList;
import androidx.constraintlayout.widget.ConstraintLayout;
import androidx.recyclerview.widget.RecyclerView;
import com.billcoreatech.multichat416.R;

import org.jetbrains.annotations.NotNull;

import java.util.ArrayList;

public class ChatAdapter extends RecyclerView.Adapter<ChatAdapter.ViewHolder> {

    private static final String TAG = "ChatAdapter";
    private final ArrayList<ChatMessage> chatMsgModels;
    String displayName ;

    public ChatAdapter( ArrayList<ChatMessage> items, String displayName) {
        this.chatMsgModels = items;
        this.displayName = displayName;
    }

    @Override
    public ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
        View view = LayoutInflater.from(parent.getContext())
                .inflate(R.layout.custom_chat_msg, parent, false);
        return new ViewHolder(view);
    }

    @Override
    public void onBindViewHolder(final ViewHolder holder, int position) {

        ChatMessage vo = chatMsgModels.get(position);
        try {
            Log.e(TAG, " userId=" + vo.getDisplayName()+ ": displayName=" + displayName) ;

        } catch (Exception e) {

        }
        if (vo.getDisplayName().equals(displayName)) {
            holder.other_cl.setVisibility(View.GONE);
            holder.my_cl.setVisibility(View.VISIBLE);

            holder.userid_tv2.setText(vo.getDisplayName());
            holder.date_tv2.setText(vo.getCrtDtim());
            holder.content_tv2.setText(vo.getContent());
        }else
        {
            holder.other_cl.setVisibility(View.VISIBLE);
            holder.my_cl.setVisibility(View.GONE);

            holder.userid_tv.setText(vo.getDisplayName()); // userId 대신 nickName 으로 대체
            holder.date_tv.setText(vo.getCrtDtim());
            holder.content_tv.setText(vo.getContent());
        }
    }

    @Override
    public int getItemCount() {
        return chatMsgModels.size();
    }

    public class ViewHolder extends RecyclerView.ViewHolder {
        public ConstraintLayout my_cl, other_cl;
        public TextView userid_tv, date_tv, content_tv, userid_tv2, date_tv2, content_tv2;

        public ViewHolder(View view) {
            super(view);
            my_cl = view.findViewById(R.id.my_cl);
            other_cl = view.findViewById(R.id.other_cl);
            userid_tv = view.findViewById(R.id.userid_tv);
            date_tv = view.findViewById(R.id.date_tv);
            content_tv = view.findViewById(R.id.content_tv);
            userid_tv2 = view.findViewById(R.id.userid_tv2);
            date_tv2 = view.findViewById(R.id.date_tv2);
            content_tv2 = view.findViewById(R.id.content_tv2);

            // 2021.11.01 item 클릭 처리를 위해서 추가
            itemView.setOnClickListener(new View.OnClickListener() {
                @Override public void onClick(View v) {
                    int pos = getAdapterPosition() ;
                    if (pos != RecyclerView.NO_POSITION) {
                        // 리스너 객체의 메서드 호출.
                        if (mListener != null) {
                            mListener.onItemClick(v, pos) ;
                        }
                    }
                }
            });
        }
    }

    // 2021.11.01 리스너 객체 참조를 저장하는 변수
    private OnItemClickListener mListener = null ;

    // OnItemClickListener 리스너 객체 참조를 어댑터에 전달하는 메서드
    public void setOnItemClickListener(OnItemClickListener listener) {
        this.mListener = listener ;
    }

    public interface OnItemClickListener {
        void onItemClick(View v, int position) ;
    }
}



다음은 데이터를 넣기 위한 구조체는 다음 처럼 구현을 하였다.



data class ChatMessage(
    var displayName:String = "",
    var crtDtim:String = "",
    var content:String = ""
)

kotlin 으로 구현을 하면서 좋은 것은 source code 가 간소화된다는 것이다. java로 구현했다면 getter / setter을 다 넣어 주었어야 하겠지만, kotlin 으로 구현하다 보니 그럼 군더더기는 필요가 없게 되었다.

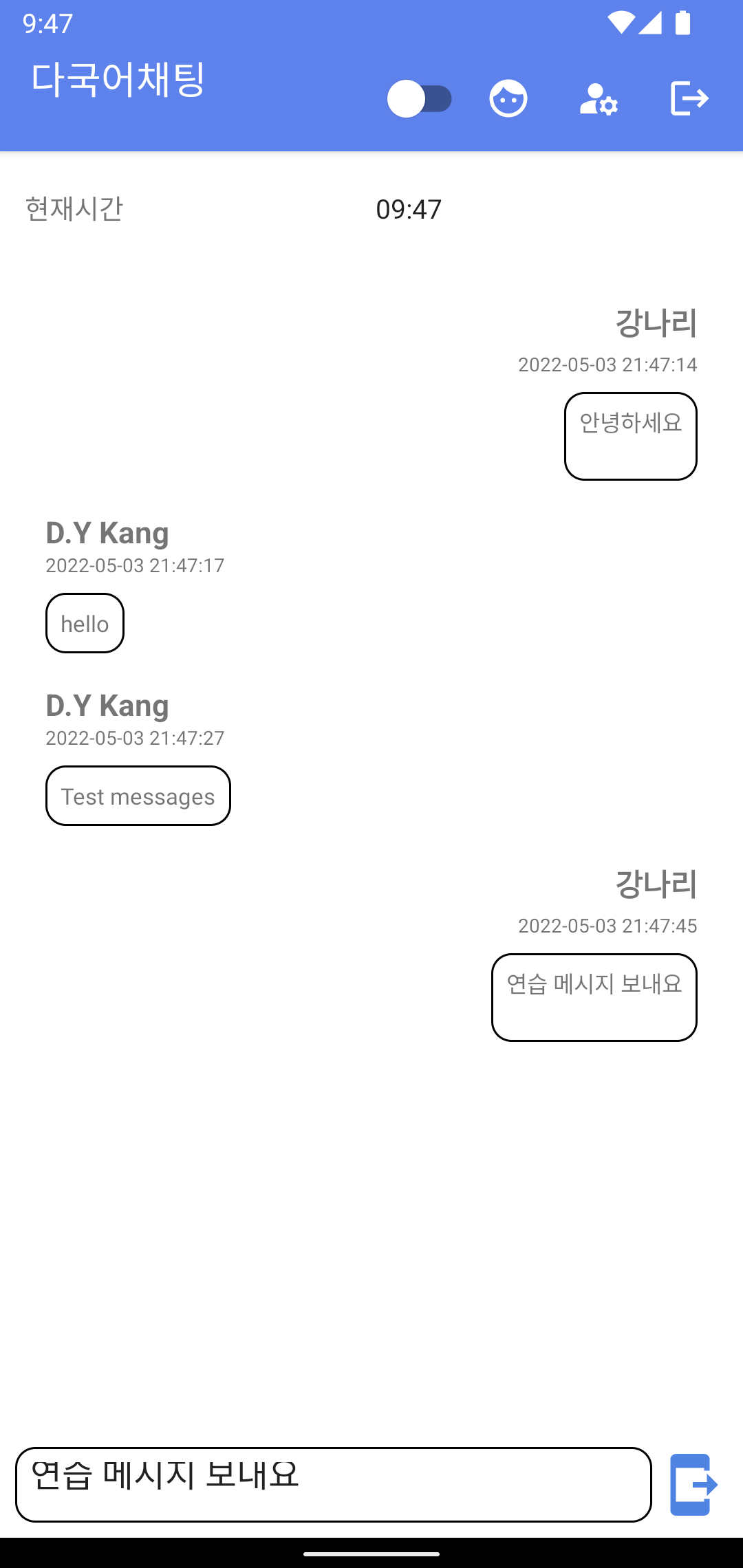

이번에는 채팅방 운영을 위한 activity code을 구현해 보았다.



import android.content.Intent
import android.content.SharedPreferences
import android.os.Bundle
import android.util.Log
import android.view.KeyEvent
import android.view.KeyEvent.KEYCODE_ENTER
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.activity.viewModels
import androidx.compose.foundation.gestures.Orientation
import androidx.compose.foundation.gestures.rememberScrollableState
import androidx.compose.foundation.gestures.scrollable
import androidx.compose.foundation.layout.*
import androidx.compose.material.*
import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.filled.Face
import androidx.compose.material.icons.filled.Logout
import androidx.compose.material.icons.filled.ManageAccounts
import androidx.compose.runtime.*
import androidx.compose.ui.Modifier
import androidx.compose.ui.viewinterop.AndroidViewBinding
import androidx.core.content.ContextCompat
import com.billcoreatech.multichat416.databean.ChatAdapter
import com.billcoreatech.multichat416.databean.ChatMessage
import com.billcoreatech.multichat416.databean.ChatMessageViewModel
import com.billcoreatech.multichat416.databinding.ActivityChatRoomBinding
import com.billcoreatech.multichat416.ui.theme.MultiChat416Theme
import com.google.firebase.auth.FirebaseAuth
import com.google.firebase.auth.ktx.auth
import com.google.firebase.database.ChildEventListener
import com.google.firebase.database.DataSnapshot
import com.google.firebase.database.DatabaseError
import com.google.firebase.database.ktx.database
import com.google.firebase.ktx.Firebase
import java.text.SimpleDateFormat
import java.util.*
import kotlin.collections.ArrayList

class ChatRoomActivity : ComponentActivity() {

    var TAG = "ChatRoomActivity"

    lateinit var displayName:String
    lateinit var auth: FirebaseAuth
    lateinit var sp: SharedPreferences
    lateinit var sdf:SimpleDateFormat
    private val database = Firebase.database
    private val chatMessages = database.getReference("ChatMessage")
    lateinit var df:SimpleDateFormat
    lateinit var chatId:String
    lateinit var startDt:String
    lateinit var adapter:ChatAdapter
    var chatMesgItems = ArrayList<ChatMessage>()
        private set
    lateinit var binding:ActivityChatRoomBinding

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        auth = Firebase.auth
        sp = getSharedPreferences("MultiChat", MODE_PRIVATE)
        sdf = SimpleDateFormat("yyyyMMddHHmmss")
        df = SimpleDateFormat("yyyy-MM-dd HH:mm:ss")
        chatId = intent.getStringExtra("chatId") as String
        startDt = intent.getSerializableExtra("startDt") as String
        Log.e(TAG, "${startDt}")
        displayName = auth.currentUser?.displayName.toString()

        chatMesgItems.clear()
        adapter = ChatAdapter(chatMesgItems, displayName)
        binding = ActivityChatRoomBinding.inflate(layoutInflater)

        setContent {
            val isDarkTheme = remember { mutableStateOf(false) }
            if(isDarkTheme.value){
                this.window.statusBarColor = ContextCompat.getColor(this, R.color.softBlack)
            }else{
                this.window.statusBarColor = ContextCompat.getColor(this, R.color.softBlue)
            }
            MultiChat416Theme(darkTheme = isDarkTheme.value) {
                Scaffold(topBar = {
                    ThemeAppBar(darkThemeState = isDarkTheme)
                }, modifier = Modifier.fillMaxSize()
                ) { innerPadding ->
                    mainContent(Modifier.padding(innerPadding))
                }
            }
        }
    }

    @Composable
    fun ThemeAppBar(darkThemeState: MutableState<Boolean>) {

        TopAppBar(title = {
            Row {
                Text(text = getString(R.string.app_name), modifier = Modifier.weight(8f))
                Switch(checked = darkThemeState.value, onCheckedChange = {
                    darkThemeState.value = it
                }, modifier = Modifier.weight(2f))
                IconButton(onClick = {  }) {
                    Icon(imageVector = Icons.Default.Face, contentDescription = "ChatRoom")
                }
                IconButton(onClick = { doProfile() }) {
                    Icon(imageVector = Icons.Default.ManageAccounts, contentDescription = "Profile")
                }
                IconButton(onClick = { doLogOut() }) {
                    Icon(imageVector = Icons.Default.Logout, contentDescription = "LogOut")
                }
            }
        })
    }

    private fun doProfile() {
        var intent = Intent(this@ChatRoomActivity, SettingActivity::class.java)
        startActivity(intent)
    }

    @Composable
    fun mainContent(padding: Modifier) {
        Box(
            Modifier
                .fillMaxWidth()
                .fillMaxHeight()
                .scrollable(rememberScrollableState {
                    // view world deltas should be reflected in compose world
                    // components that participate in nested scrolling
                    it
                }, Orientation.Vertical)
        ) {

           // compose 에서 layout 을 binding 해서 사용하는 코드 구현...
            AndroidViewBinding(ActivityChatRoomBinding::inflate) {
                var binding = this
                chatMessages.child(chatId).orderByChild("crtDtim").startAfter(startDt.toString())
                    .addChildEventListener(object : ChildEventListener{
                        override fun onChildAdded(snapshot: DataSnapshot, previousChildName: String?) {
                            Log.e(TAG, "onChildAdded")
                            var chatMessageItem = snapshot.getValue(ChatMessage::class.java)
                            // 왜 2번씩 들어가는지 모르겠지만... 일단은 한번만 들어가게 하기 위해서
                            if (chatMessageItem != null && chatMesgItems.indexOf(chatMessageItem) < 0) {
                                chatMesgItems.add(chatMessageItem)
                            }
                            binding.rv.adapter = adapter
                            binding.rv.scrollToPosition(chatMesgItems.size - 1)
                        }

                        override fun onChildChanged(snapshot: DataSnapshot, previousChildName: String?) {
                            Log.e(TAG, "onChildChanged")
                        }

                        override fun onChildRemoved(snapshot: DataSnapshot) {
                            Log.e(TAG, "onChildRemoved")
                        }

                        override fun onChildMoved(snapshot: DataSnapshot, previousChildName: String?) {
                            Log.e(TAG, "onChildMoved")
                        }

                        override fun onCancelled(error: DatabaseError) {
                            Log.e(TAG, "onCancelled")
                        }

                    })
                this.sendIv.setOnClickListener {
                    if (this.contentEt.text.length > 0) {
                        var chatMessage = ChatMessage(displayName, df.format(GregorianCalendar.getInstance(TimeZone.getDefault()).timeInMillis),this.contentEt.text.toString() )
                        chatMessages.child(chatId).push().setValue(chatMessage).addOnSuccessListener {
                            Log.e(TAG, "push Success...")
                        }.addOnFailureListener {
                            Log.e(TAG, "push Failure...")
                        }
                    }
                }
            }
        }
    }

    private fun doLogOut() {
        chatMessages.child(chatId).setValue(null)
        finish()
    }
}



이렇게 구현을 해서 처리가 되기는 했지만, 아직 해소가 되지 않은 것은 내용을 입력 하면 realtime database에 기록이 되고, addChiledEventListener을 통해서 기록된 내용을 가져와서 recycleview에 표시를 하기 위해서 arryalist에 넣어 주는 구현을 하였는데, 입력은 1번인데 실제 표시는 2번씩 나오는 현상이 발생하였다.  아직 그 원인을 알지 못해 꼼수를 넣었다. arraylist에 이미 들어 있는 거면 넣지 않도록 하여 해소를 하였다.



구현된 화면 예시와 동작은 다음과 같이 처리가 되었다.

채팅방 예시





동영상 예시



이렇게 까지 구현을 하면 compose 로 화면을 구현하고 예전에 만들었던 layout 을 가져와서 활용하는 것도 구현을 해 보았다.
